SPARE PARTS LIST- Oven Furniture

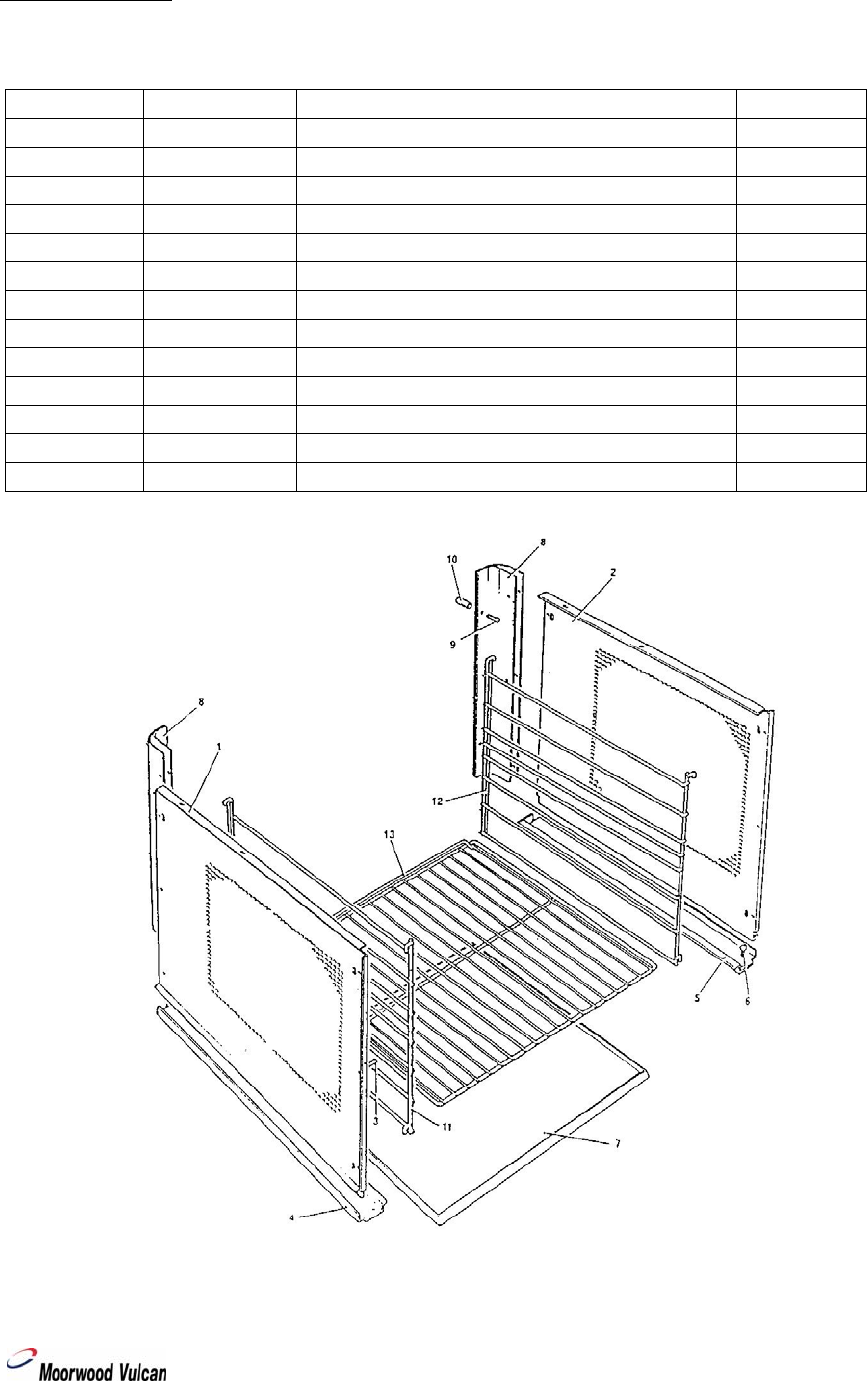

Fig. 24

Item No Part No. Description Quantity

1 111422-G2 Side Lining Assembly – LH 1

2 111422-G1 Side Lining Assembly – RH 1

3 Screw 1

4 111511-G1 Liner Track Assembly - LH 1

5 111511-G2 Liner Track Assembly – RH 1

6 Screw 4

7 111429-2 Drip Pan 1

8 112056-G1 Air Scoop Assembly 2

9 Screw 10

10 930198-06 Air Scoop Spacer 4

11 111430-02 Oven Rack Support – LH 1

12 111430-01 Oven Rack Support – RH 1

13 111265-2 Oven Rack 7

Manual Part No: 930087-01 SNORKEL Gas Convection Oven - 45 –
